- Size: 15
- Place of Origin: zhejiang
- Brand Name: willing
- Model Number: WLFM26-200-1000& 28-190-950
- Weight: 7000.000 kg
l Components for the Machine

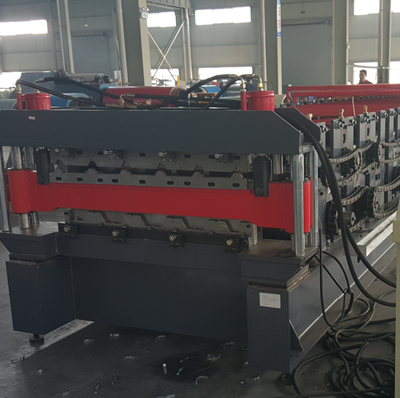

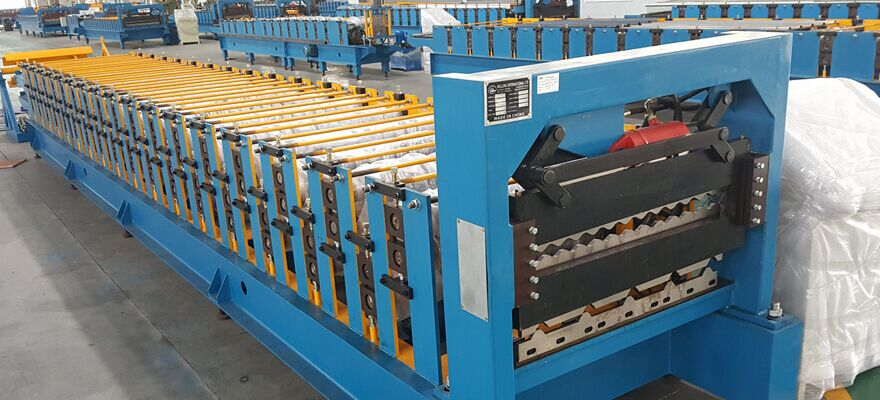

The roll forming line include s in d ecoiler unit , sheet guideing equipment, roll forming system, pressing equipment ,cutting equipment, hydraulic station, electric controlling system .
l Technical Parameters
Material Spec galvanized sheet
the raw material width 1200mm
Thickness 0. 3 mm to 0. 7 mm .
Coils stress 235mpa
Working Speed 2.0-3.0 m / min. ( nodal distance at 350mm,)
Cutting Tolerance ≤±2 . 5mm ( length ≤ 5000mm)
≤±3mm ( 5000mm < length ≤ 10000mm)
Power Requirement Main motor power: 5.5K w
Hydraulic station power: 5 . 5 Kw
Uncoiler Max. Capacity: 5 000kgs
Inner coil dia. 508mm
Roller and stand about16 stands
Machine dimension about 13000mm*1550mm*1500mm(length*wide*height)
mainbody dimension about 8500mm*1550*1500mm(length*wide*height)
(can be put into one 40 ’ container)
Type of cutting Roll-formed and length-set cutting
